Installing Custom Animations

In this guide, you will learn how to add new animations to Flipper Zero.

1. Getting the Files

First, you need to download the animations to your local computer. Usually, they can be found on GitHub. For our example, we will take Wr3nch's Flip0Anims repository.

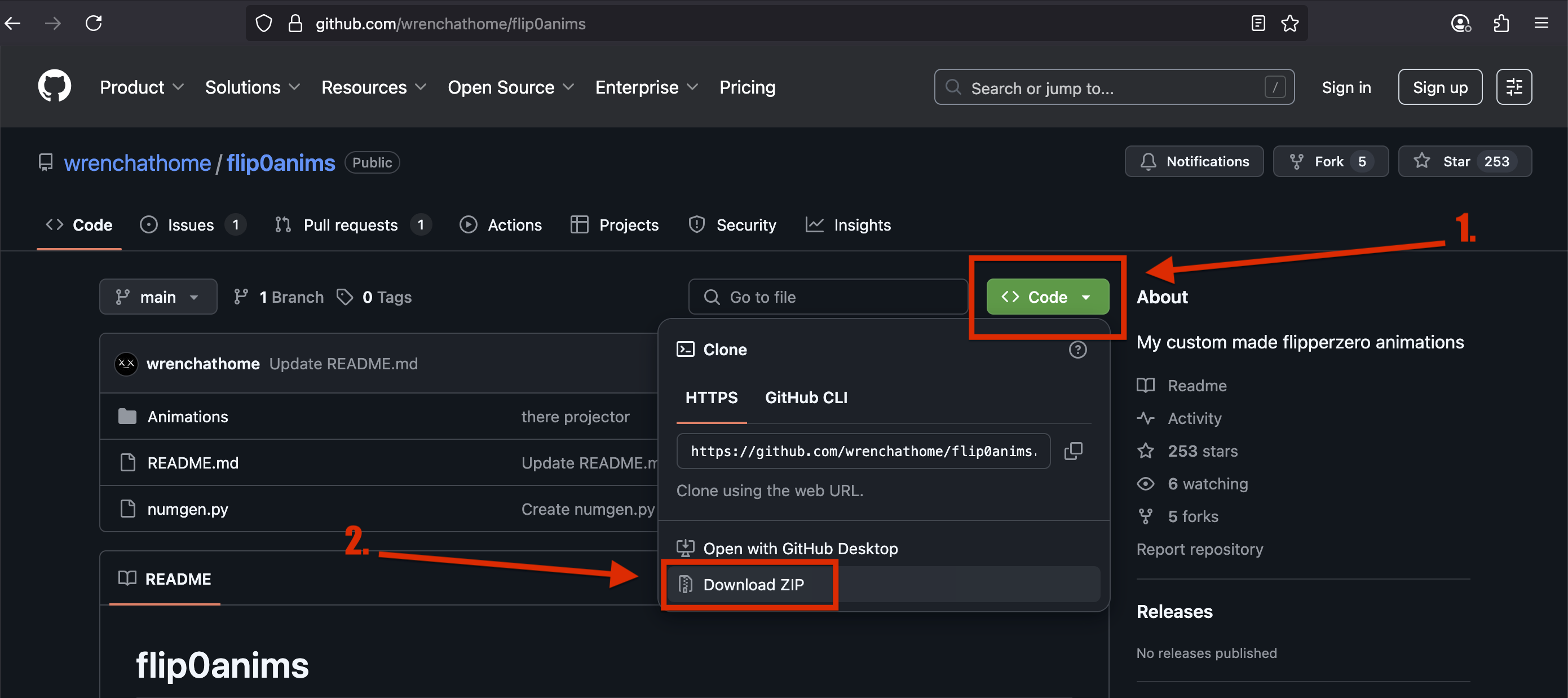

In the repo, simply click on the green "Code" button and select "Download ZIP":

Download Zip

More Flipper Zero Animation repos from other creators:

2. Prepare Your Animation Folders

In this example, we will prepare the X_X_FLIPCLAP and X_X_FLIPPATTERN animations from the downloaded repo:

x_x_flipclap x_x_flippattern

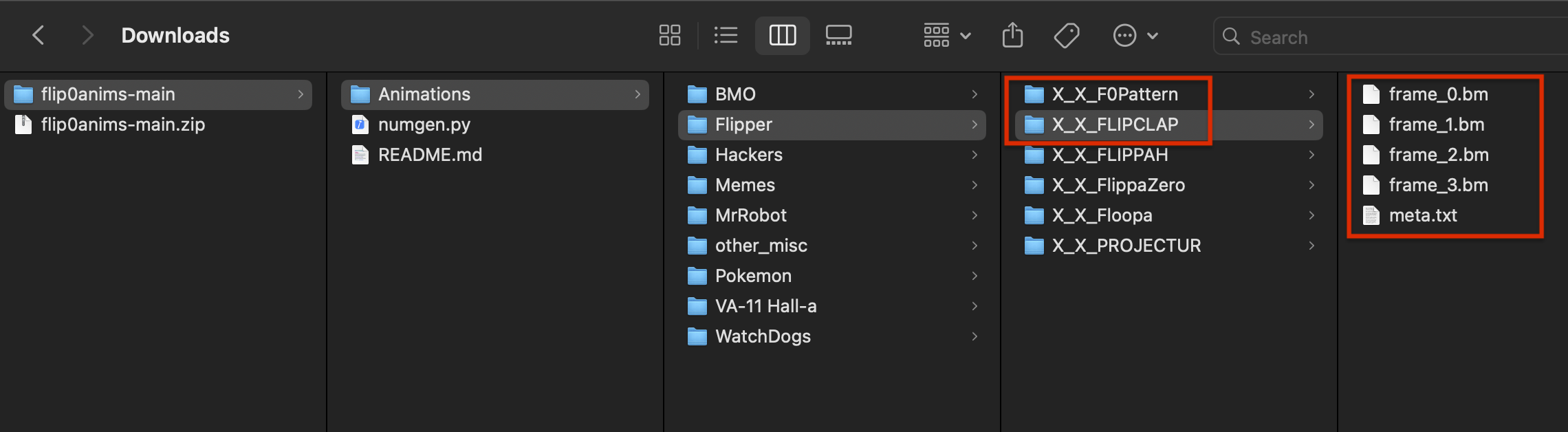

After the download has finished, extract the flip0anims-main.zip file. You will only need the folders of the animations you want to use. Find the X_X_FLIPCLAP and X_X_FLIPPATTERN folders in: flip0anims-main > Animations > Flipper.

Folders

Note

Make sure each animation folder contains:

  • The animation frames, numbered in order: frame_0.bm, frame_1.bm, and so on
  • A meta.txt file

3. Copy the Folders to Your SD Card

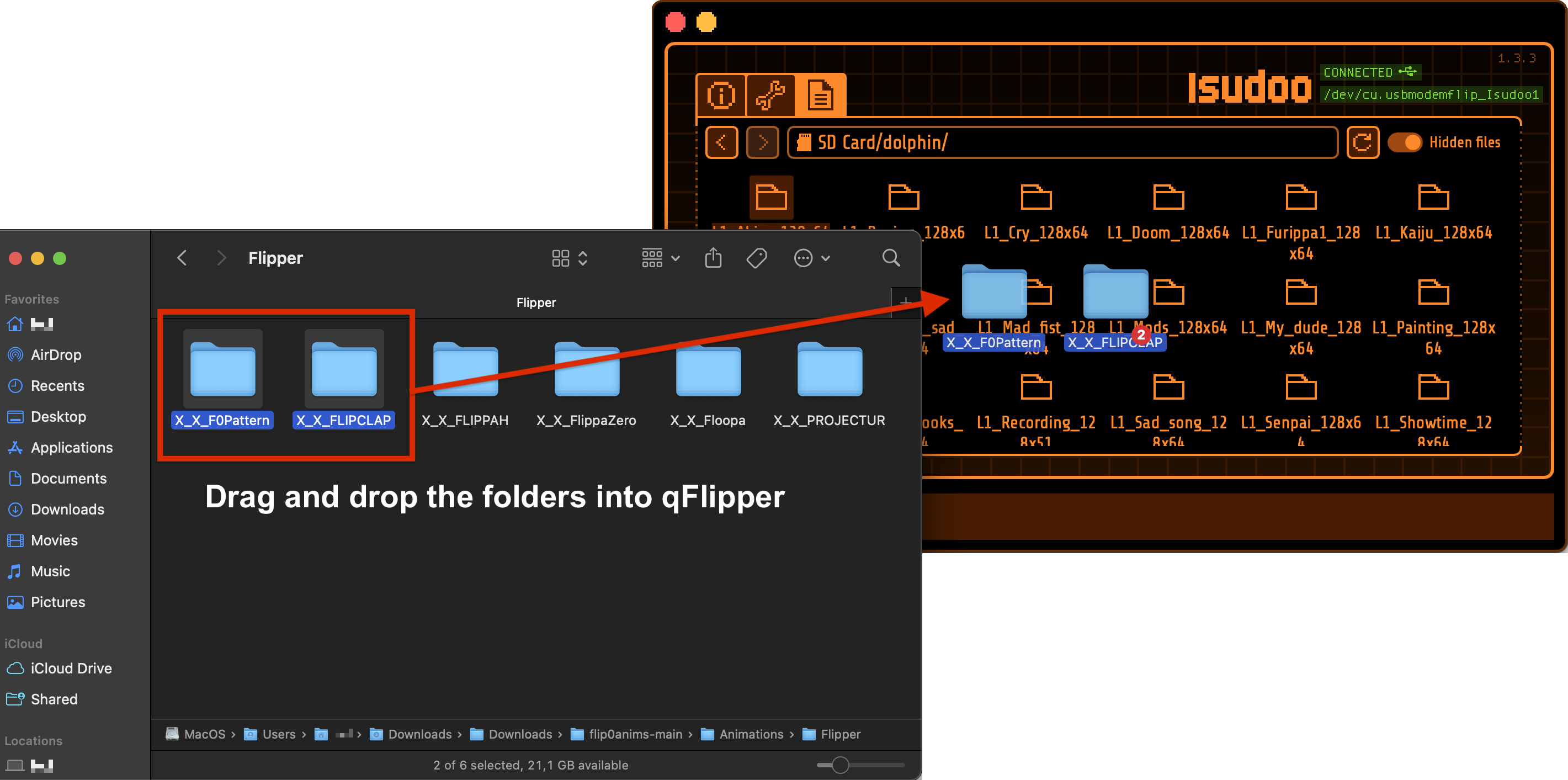

Copy the animation folders into the following directory on your Flipper's SD card via qFlipper:

/SD Card/dolphin/
Copy to Flipper

4. Getting the manifest.txt File

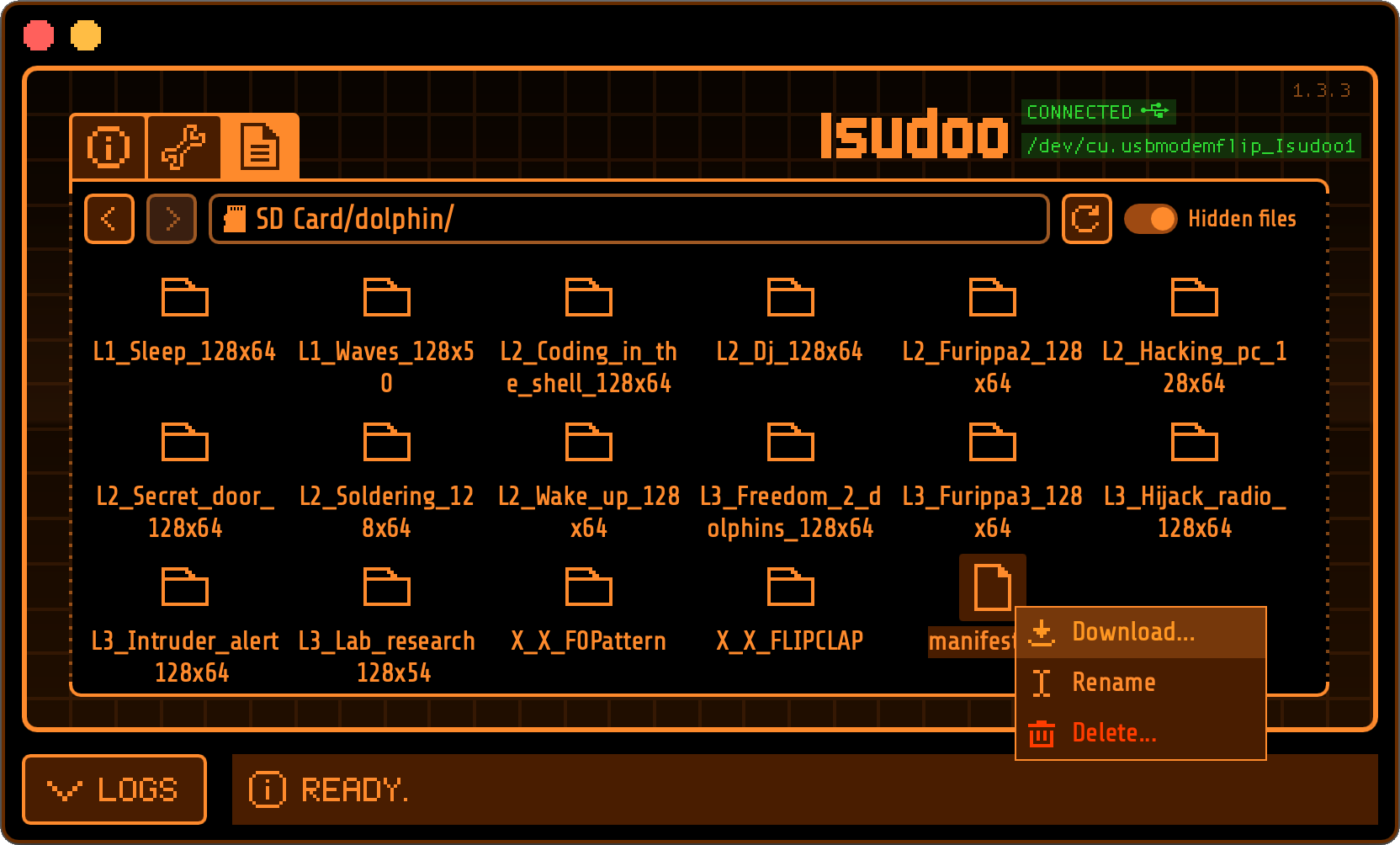

In qFlipper, right click the manifest.txt file and select the Download option. Save it to your computer so that you can edit it.

Download manifest.txt

The contents of your manifest.txt file should look like this:

Filetype: Flipper Animation Manifest
Version: 1

Name: L1_Waves_128x50
Min butthurt: 0
Max butthurt: 5
Min level: 1
Max level: 3
Weight: 3

Name: L1_Laptop_128x51
Min butthurt: 0
Max butthurt: 7
Min level: 1
Max level: 1
Weight: 3

/* ...info on other animations continues... */

Note

You can always re-download the latest version of the manifest.txt file from the firmware repository: https://github.com/flipperdevices/flipperzero-firmware/blob/dev/assets/dolphin/external/manifest.txt

5. Add New Animation Entries

For each new animation, add the following block to your manifest.txt:

Name: REPLACEME
Min butthurt: 0
Max butthurt: 14
Min level: 1
Max level: 3
Weight: 3

Replace REPLACEME with the exact name of your animation folder.

Note

Blocks can be added anywhere in the manifest, as long as they are separated by an empty line. For convenience, we recommend grouping them together at the start or end of the file.

In our example, we add 2x of those code snippets to the start of our file, and then change the two REPLACEME's to X_X_FLIPCLAP and X_X_F0Pattern so it looks like this:

Filetype: Flipper Animation Manifest
Version: 1

Name: X_X_FLIPCLAP
Min butthurt: 0
Max butthurt: 14
Min level: 1
Max level: 3
Weight: 3

Name: X_X_F0Pattern
Min butthurt: 0
Max butthurt: 14
Min level: 1
Max level: 3
Weight: 3

Name: L1_Waves_128x50
/* ...info on other animations continues... */

Tip

To test only your new animations, remove all other entries. Make sure to back up the manifest.txt file first!

6. Apply Changes and Upload the File to Flipper

Save your changes to the manifest.txt file, and upload it to the /SD Card/dolphin/ folder on your Flipper Zero.

7. Reboot Your Flipper

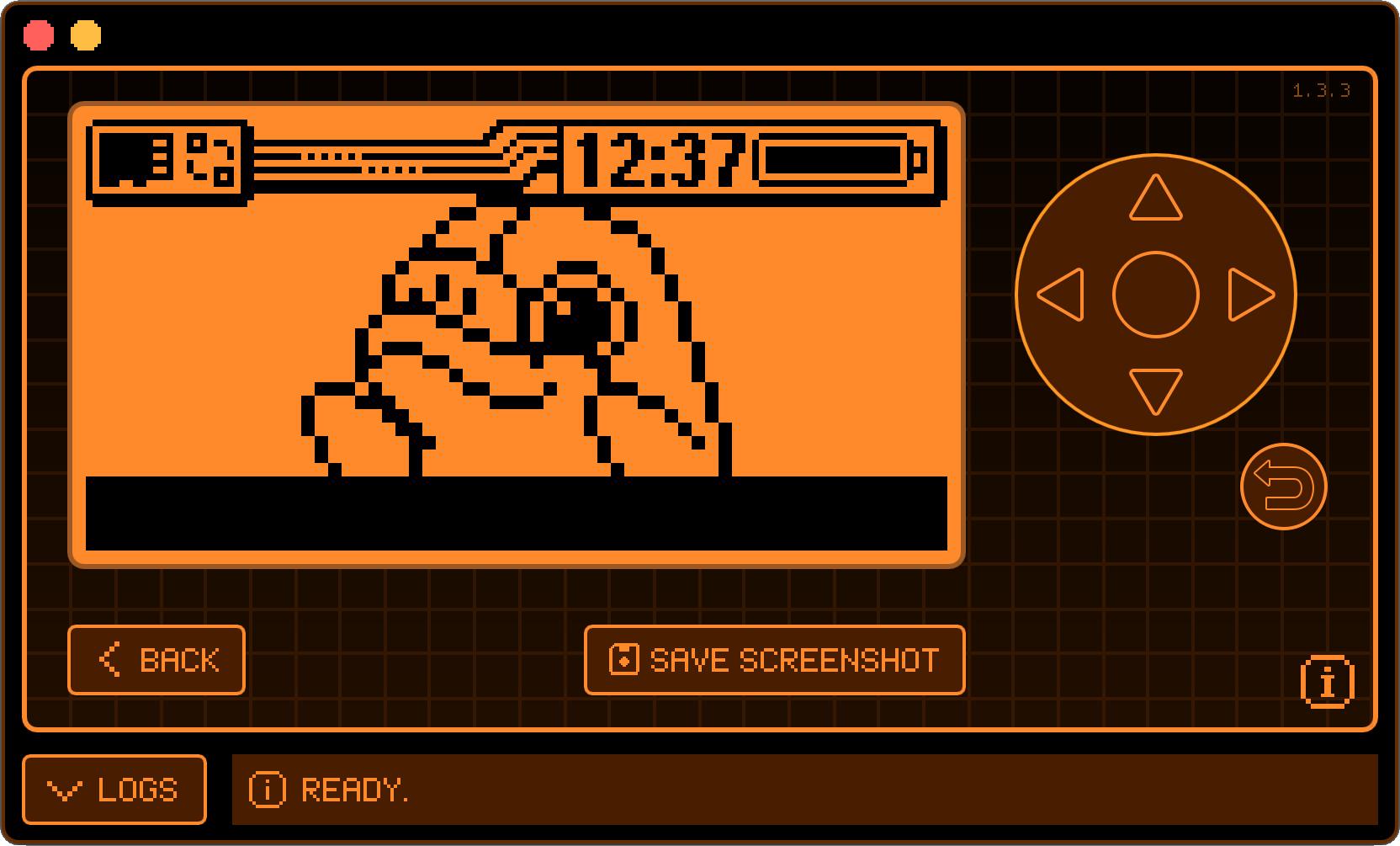

Restart your Flipper. Your new animation should now appear!

New Animation

Note

On each boot, a random animation will be chosen. You can not select manually which animation will play.

Don't Lose Your Updates

The manifest.txt on your SD card gets replaced with each firmware update. Make sure to back it up before you install the latest version.
