Flipper Zero Asset Creation Tools Guide

A guide of all time that focuses on animation tools and how to get them working by pr3!
To suggest any changes to this doc, please contact me on Discord - my username is pr3..

Glossary

Click me for a glossary!

CLI:
Command-Line Interface: referring to your computer's cmd, powershell or terminal. This is used to input commands, namely when installing some compilers and their dependencies or compiling your animations with select compilers.

OFW:
Official Firmware. Any reference to the official firmware created by Flipper Devices.

CFW:
Custom Firmware. Any reference to custom firmware created by anyone other than Flipper Devices

I Need Software!

You came to the right place! This guide will include explanations on what each art software accomplishes, it's pros/cons, and how to get it set up and compiling your animations!

Note

This guide covers getting animation working for both OFW and CFW. If you're using a CFW, use one that follows your country's local laws.

What Software do I Use?

‣ Local Software

1. Aseprite

• A favourite among many pixel artists - built for seamless pixel art and animation.
• Streamlined user experience - useful keybinds, key features, built in exporting feature meaning you won't need to use AntRenamer and built in tools for shapes, fill, dithering among others. Overall perfect all-in-one pixelart software.
• FOSS - you can buy it on their site, on steam, build it yourself, or download v1.3.14.4 from my repo! Do consider donating to the devs.

2. Adobe Photoshop

• Professional paid tool - much less user-friendly with a steep learning curve.
• Phenomenal amount of features and support - (although you don't need much for animation...), a solid streamlined workflow and consistent tools. Incredibly overkill if you're looking to just make Flipper animations; there's considerably better tools for this usecase created by better companies for cheaper.
• "Like driving an F1 car to the grocery shop" - Kuronons

3. GIMP

• GIMP is essentially a FOSS version of Photoshop, with some holes.
• Not much else to mention other than the fact it's a slightly clunkier free Photoshop with considerably less features.

4. Microsoft Paint

• Terrible piece of software - beyond clunky to use, especially for a usecase where you're constantly editing frames, previewing your animation and using keybinds for tools.
• Zero user experience - barely responsive, lack of keybinds, no animation previewer. Bare minimum of basic
• Don't even consider this software - download a portable version of Aseprite, Photoshop or GIMP and hit the ground running.

‣ Web-Based Tools

1. EzGIF

• EzGIF is a web-based .gif editing platform, beyond useful for turning any .gif into a Flipper animation.
• EzGIF is very effective at grabbing frames from a .gif and manipulating them with a handful of filters and settings if you don't want to spend much time custom-making an animation from scratch. Evidently, it lacks the features of a normal pixelart software.
• EzGIF is a great site to start off animation, many people use it to make their first!

2. Piskel

• Piskel is a free, open source web and offline plaform for creating animations and sprites that is surprisingly well made for pixelart specifically compared to it's competitors. Easily the best in it's class for online pixelart.
• It works similarly to Aseprite - but web-based (go figure..), while including many of aseprite's useful tools, even managing keybinds for each.

3. Lopaka

• Lopaka is a close second to Piskel; another web-based art platform with premade display settings for the Flipper Zero/One among other devices, although you can only choose from preset canvas sizes.
• It includes many pre-made assets and icons that may be useful for app/UI development, less for animation.
• Similar to Photopea, it's much better for small edits or creating menus since it lacks frame management. (although you'll likely be doing single frame edits in your dedicated art suite)

4. Photopea

• Photopea is a web-based art platform similar to Photoshop.
• It's better for single frame editing, and catching those slight details.

Note

Web-based software can have noticeably more latency and lag compared to local software, and can lack in some features. However, the convenience still makes them somewhat useful for small edits.

I Chose a Software! What Now?

‣ Learn!

Now you create, experiment, and learn! YouTube has some great tutorials from various channels and Pinterest is great for inspiration. Just searching "pixelart" on YouTube can get you to many useful resources. Refer to the rest of this doc to find out how to compile your animation.

‣ Contribute!

There's plenty of projects across GitHub that host animations and reference artists, such as MomentumFW's Asset Pack Site and other repos like Kuronons' FZ_Graphics. Make a pull request, and get your art featured!

Common Issues

‣ File Structure: OFW

You won't have to worry about manually doing this, FBT handles this sort of thing for you if you're using custom animations. More on compiling with FBT later.

├── dolphin/
│   ├── blocking/
│   │   ├── L0_NewMail_128x51
│   │   ├── L0_xyz_128x51
│   │   └── L0_xyz_128x51
│   ├── external/
│   │   ├── L1_Akira_128x64
│   │   ├── L2_xyz_128x64
│   │   └── L3_xyz_128x64
│   └── internal/
│       ├── L1_BadBattery_128x47
│       ├── L1_xyz_128x49
│       └── L1_xyz_128x47
├── icons/
│   ├── About/
│   ├── Animations/
│   ├── Archive/
│   └── etcetera_etcetera/
├── protobuf/
└── slideshow/

Note

Again, there's a high amount of folders left out for the sake of keeping this doc somewhat simple. See the OFW assets/ source code for a full list of files. Again, to change asset files that haven't been listed, keep the file's folder name the same - just change the filename and let FBT handle file extensions.

‣ File Structure: CFW

File structure is very important - without it, the Flipper can't understand how to display your animation, and you'll get errors left and right. This is more involved with CFW than OFW. An asset pack for a custom FW should look something like this:

Animation_Pack_Name/
    ├── Anims/
    │   ├── Animation_1/
    │   │   ├── frame_0.bm
    │   │   ├── frame_1.bm
    │   │   ├── frame_xyz.bm
    │   │   └── meta.txt
    │   ├── Animation_2/
    │   │   ├── frame_0.bm
    │   │   ├── frame_1.bm
    │   │   ├── frame_xyz.bm
    │   │   └── meta.txt
    │   ├── Animation_3/
    │   │   ├── frame_0.bm
    │   │   ├── frame_1.bm
    │   │   ├── frame_xyz.bm
    │   │   └── meta.txt
    │   └── manifest.txt
    └── Icons/
        └── Passport/
            ├── passport_bad_46x49.bmx
            ├── passport_happy_46x49.bmx
            ├── passport_okay_46x49.bmx
            └── passport_128x64.bmx

Note

In the Icons/ folder, there's significantly more customisation available, however if I listed it in the tree above we'd be here forever. Please refer to your firmware's source code to get the correct file and folder names. To change whatever hasn't been mentioned, keep the folder name the same as what's listed in the FW, and just change the appropriate filenames - Your compiler will handle file extensions for you.

‣ Compilation

Sometimes using the wrong compilation software (particularly img2fbm) can render your frames unusable for the Flipper. Please choose from the tools listed below to mitigate errors and get your animations working! to debug your animation, go to lab.flipper.net's CLI and enter one of the below commands. Make sure qFlipper is closed!

log error	log debug	log trace
Lowest verbosity	Just-right verbosity	Highest verbosity
Logs just errors.	Use this. Perfect amount of logs	Overwhelming amount of logs

‣ Logs

• Can't upload animation described in manifest: xyz:
  Flipper failed to load your animation. This could be due to incorrect file structure, incorrect/corrupt frames, meta.txt files or manifest.txt.


• Error loading animation: frames order:
  Self explanatory - an issue with your frame order in either of your animations. Tools such as Ant Renamer are great for bulk renaming frames if you're not looking to manually change your frame order. Check your meta.txt's frame order to make sure it's right - if you have one frame listed more than once, you need to add that to the Passive frames: or Active frames: count. e.g., 0 0 1 1 2 2 3 3 is 6 passive/active frames, not 3.


• Failed to load animation bubbles Self explanatory - Flipper failed to load your animation's speech bubbles. Make sure they're set correctly in your animation's meta.txt. Kuronons' guide explains how to use bubbles, although people usually manually draw them.

Note

OFW animation services code is located here.

‣ File Contents

Note

* = Required
/ = Optional

• meta.txt

  Filetype: Flipper Animation             *
  Version: 1                              *

  Width: 128                              *
  Height: 64                              *
  Passive frames: 5                       *
  Active frames: 0                        /
  Frames order: 0 1 2 3 4                 *
  Active cycles: 0                        /
  Frame rate: 1                           *
  Duration: 3600                          *
  Active cooldown: 0                      /

  Bubble slots: 0                         /


Note

Anything listed as Optional should be defined as 0; do not remove the line. Passive frames are required - have at least one in your animation, or else it'll error. Kuronons' guide does a significantly better job at explaining meta.txts than I do, and you should read up on it before creating one.

• manifest.txt

  Filetype: Flipper Animation Manifest    *
  Version: 1                              *

  Name: animation_xyz                     *
  Min butthurt: 0                         *
  Max butthurt: 14                        *
  Min level: 1                            *
  Max level: 3                            *
  Weight: 8                               *

  Name: animation_xyz                     *
  Min butthurt: 0                         *
  Max butthurt: 14                        *
  Min level: 1                            *
  Max level: 3                            *
  Weight: 8                               *


Note

manifest.txt's settings are obviously entirely required.
Min and Max butthurt control the minimum and maximum butthurt the animation can display at - used for when you want to show certain animations depending on Flipper's mood. 0-4 butthurt levels are Happy, 5-9 is Okay and 10+ is Angry.

Similarly to the butthurt, Min and Max level controls the minimum and maximum Flipper level the animation can display at - used for when you want to show certain animations depending on Flipper's level. For some CFW, maximum level may exceed OFW's maximum of 3 levels.

Weight just controls the chance of an animation playing compared to other animations. An animation with Weight: 2 will statistically play less often than animations with Weight: 3 and up. If you want an equal chance, just make each Weight the same number.

Viewing Your Animation

Note

Ooggle's Flipper Animation Manager is the tool for previewing your creations. More on it's features below. Flipper Animations only take .bm files, compiled from .png files. "How do I compile frames?" I hear you ask?

‣ Compiling Frames

1. Flipper Animation Manager

• Ooggle's FlipperAM is a speedy well built FOSS previewer with a built in compiler, and a GUI.
• The perfect suite for viewing and compiling animations on the fly. Zero complaints.

2. asset_packer.py

• WillyJL's asset_packer.py is a great quick and easy script for compiling asset packs for CFW.
• Easy to use once set up, and compiles blisteringly fast. I highly recommend this tool!
• May be hard to set up for someone new to Python and CLI in general.

3. FBT

• Flipper Build Tool is a decent, but time consuming and generally overkill tool with a simple installation - just clone the OFW repo.
• You'll need it if you want to compile animations for OFW.
• TalkingSasquach has a useful video on compiling with FBT. Follow it if you're compiling for the first time. Although it's outdated, it covers other bases animation-wise as well.

4. img2fbm

• img2fbm although a convenient tool being drag n drop, it's very unreliable for creating frames.
• It sometimes makes useable animations, however you'll find other tools get the job done considerably better.

How do I Install/Use my Compiler?

FlipperAM

• Please see Ooggle's Guide on how to install FlipperAM to get it working on Windows, MacOS or Linux.

  Using the Software:

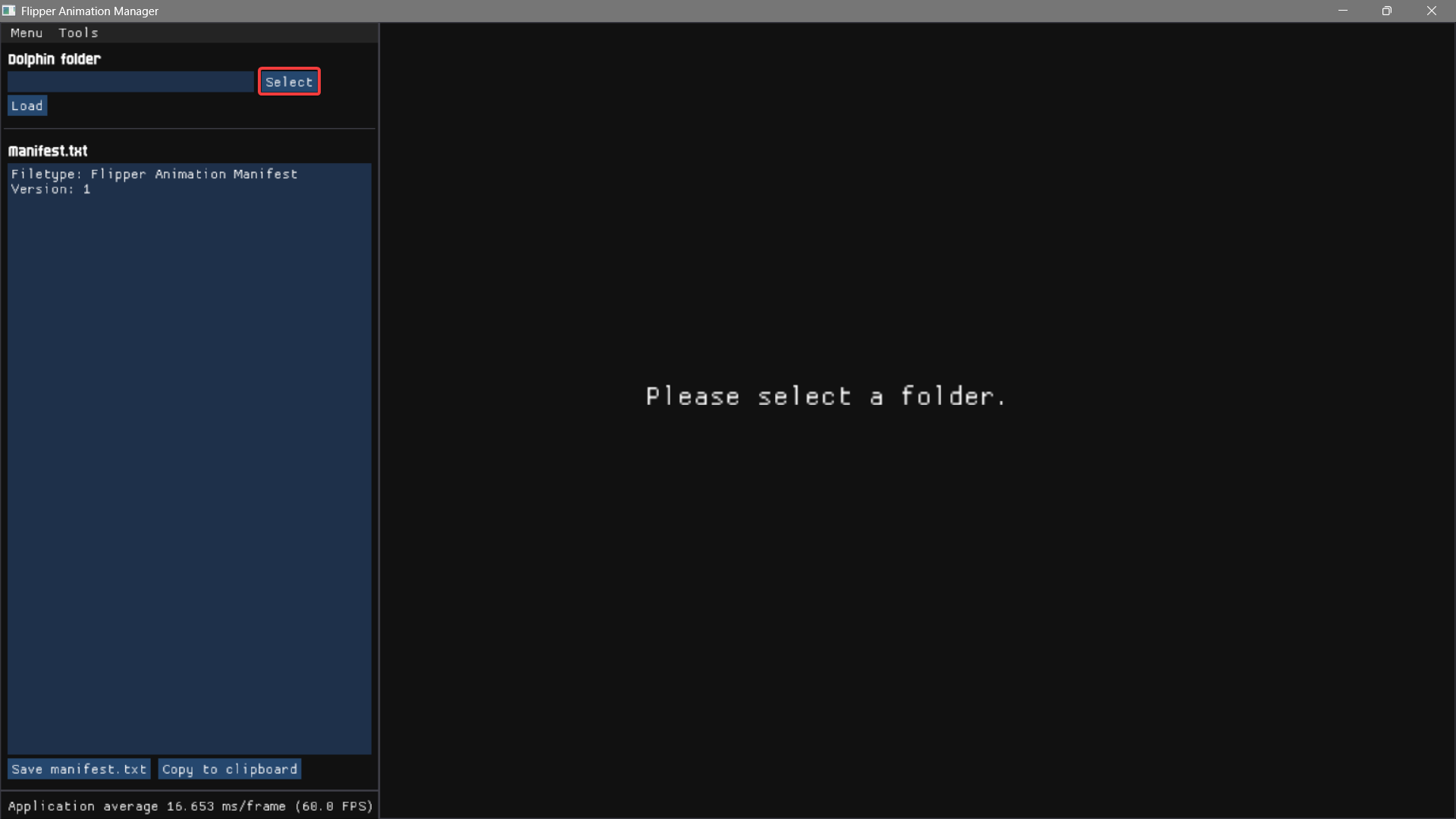

• Click select to see your file explorer menu. Make sure your asset pack is properly structured beforehand.

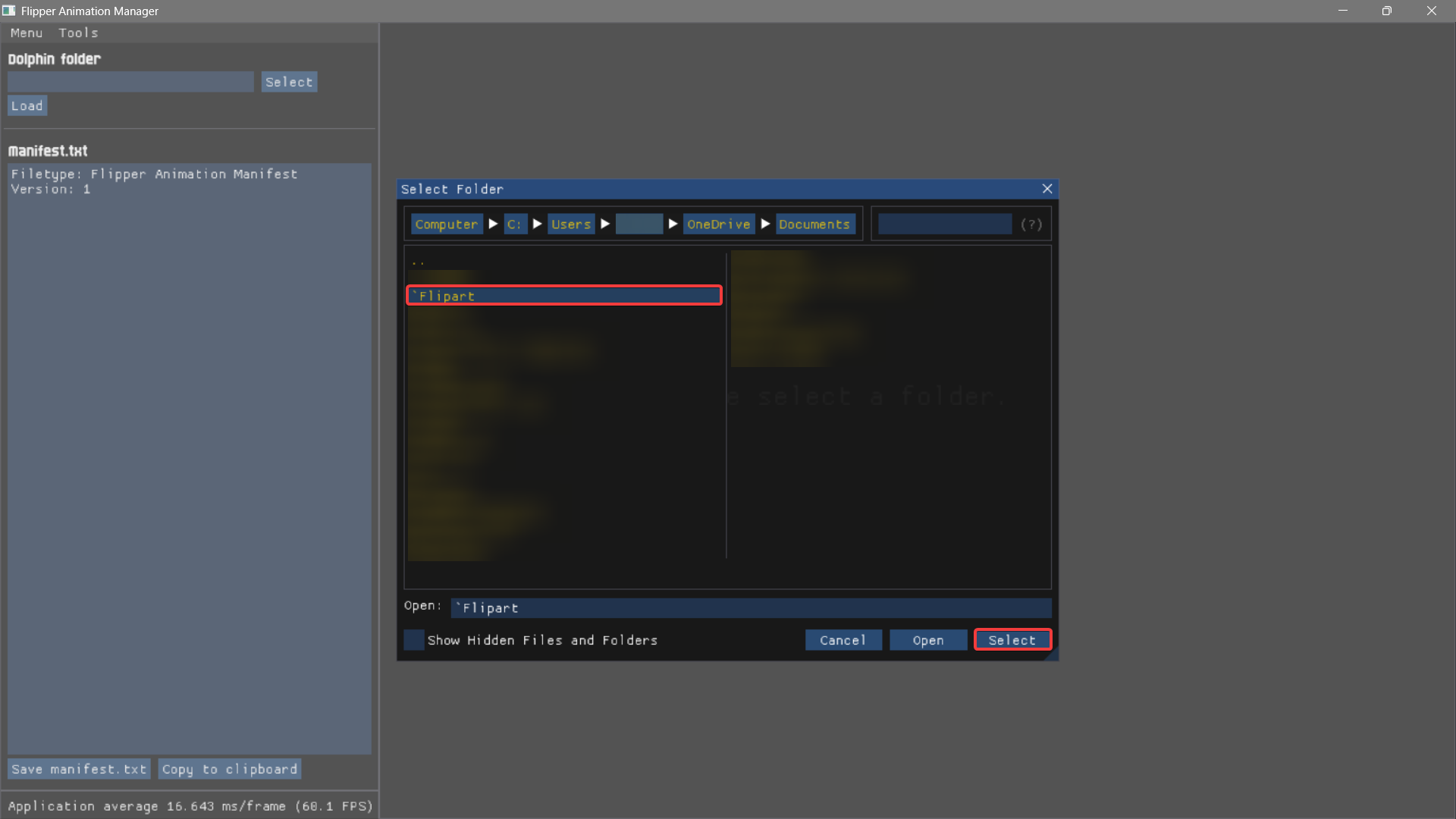

• Navigate to your asset pack's path, click it's folder, and click Select.

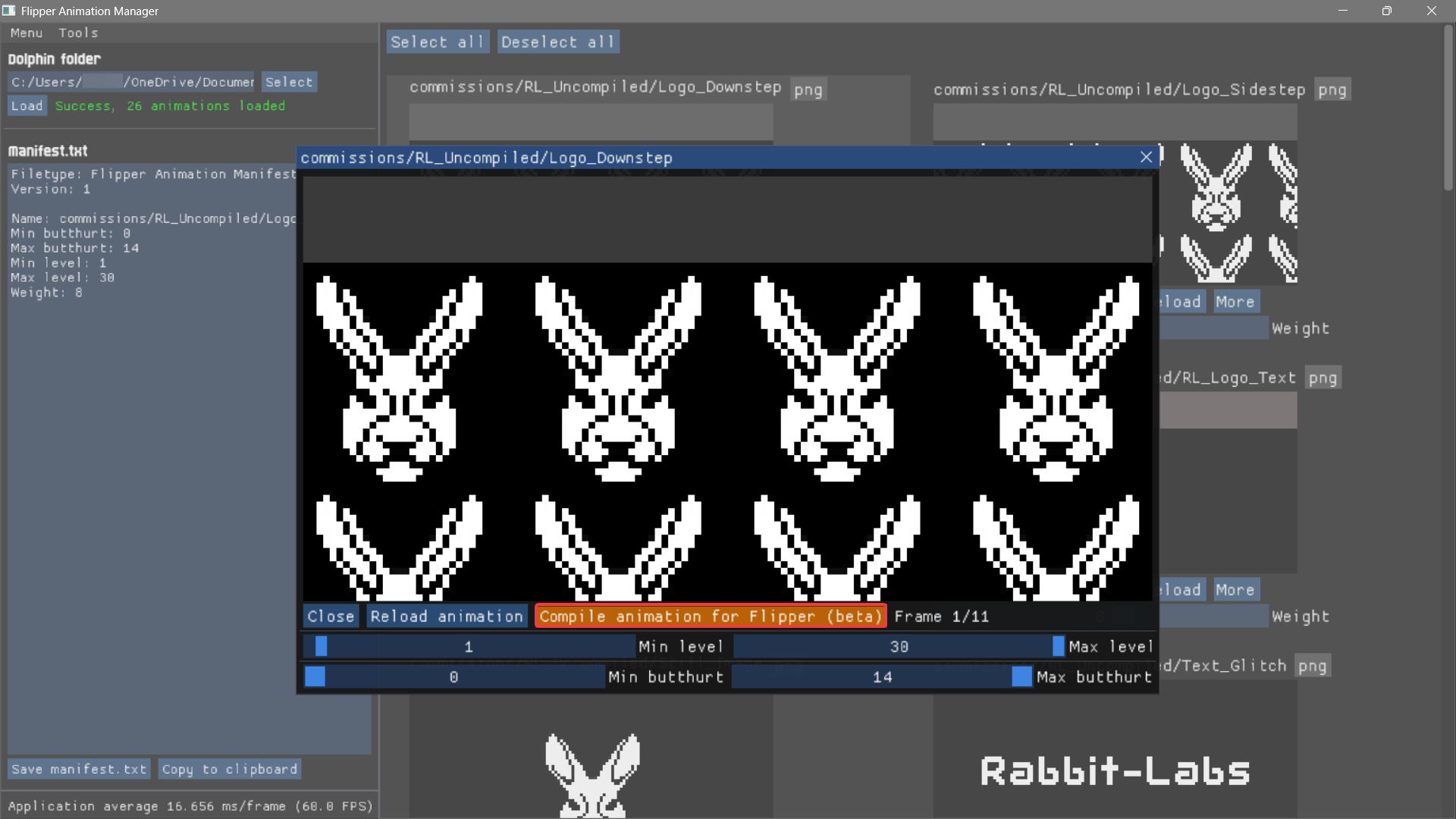

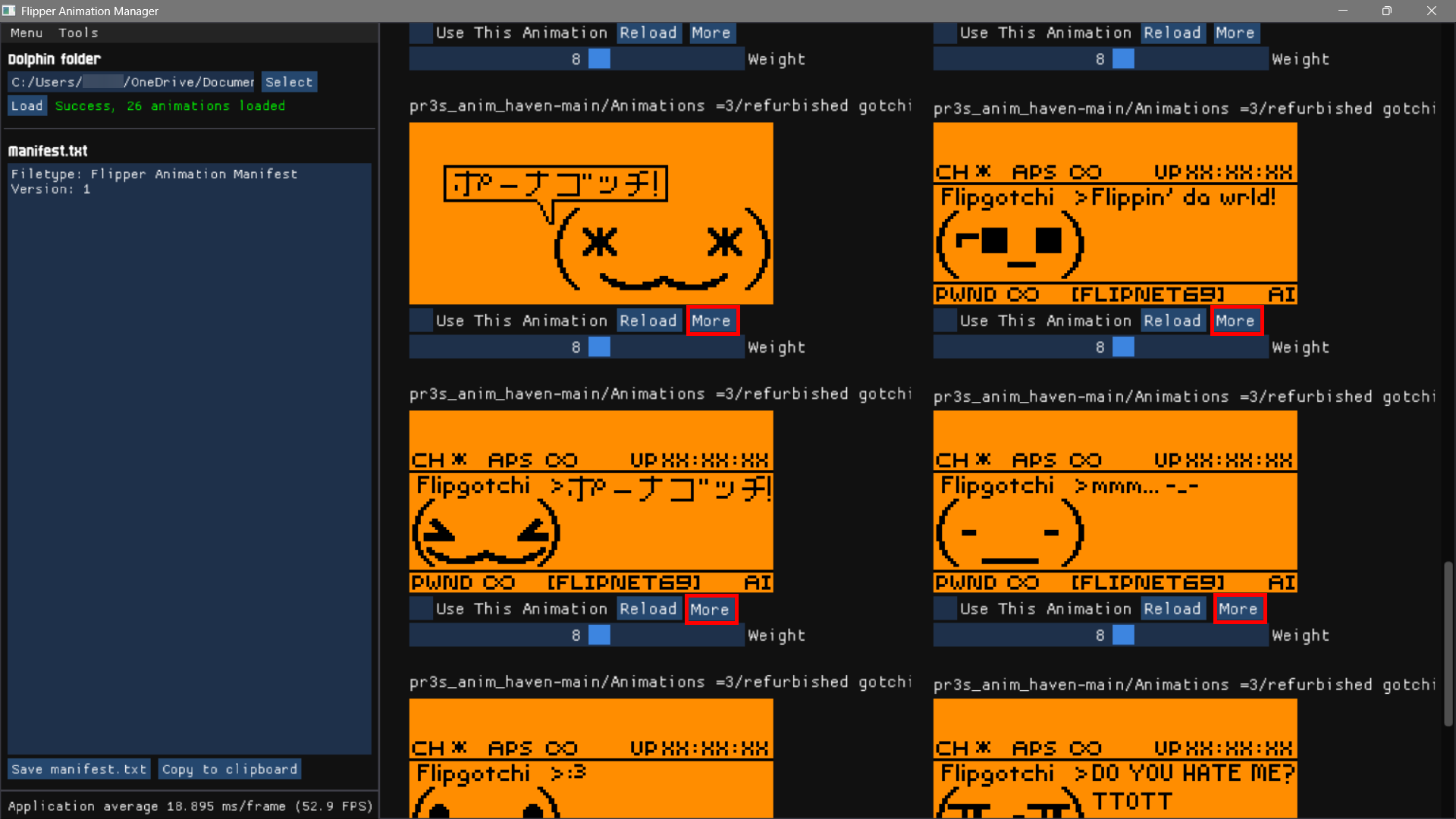

• Now you can preview your compiled or uncompiled animations. Here I'm previewing compiled packs.


• Uncompiled, you can click Compile animation for Flipper. This will make a folder animationxyz_compiled.


• Replace animationxyz with animationxyz_compiled, and rename it if you'd like! now you have compiled frames in your pack. You can also make a new manifest.txt from the previewer after clicking an animation, and alter Level and Butthurt.

asset_packer.py

Usage:

• Prepare a folder for the script and your animation. Doesn't matter where you put this folder - mine's on my desktop.


• Download the script directly from WillyJL's Repo, and save it to the folder you just made.


• Open your terminal and install python with winget install Python.Python.3 -e --accept-package-agreements (Windows), sudo apt install python3 (Debian-based Linux), or sudo pacman -S python3 (Arch-based Linux)


• Install the required dependencies with pip install pillow heatshrink2 (Windows, Debian-based Linux, Arch-based Linux)


• Put your correctly structured asset pack (see above section for file structure) in the same folder as the script, open a terminal in the folder you created earlier and enter python3 asset_packer.py.

• If done right, the script will run and you'll see this prompt:


  This will look through all the subfolders next to this file and try to pack them
  The resulting asset packs will be saved to 'asset_packs' in this folder
  Press [Enter] if you wish to continue


• After pressing enter, your asset pack(s) will be compiled and ready to drag and drop into qFlipper. Good job!

FBT

• See TalkingSasquach's Animation Video, which covers compiling with FBT.

• Make sure you clone the OFW repo with git clone https://github.com/flipperdevices/flipperzero-firmware to use FBT.

Difference Between Compilers

Note

Different compilers compile frames differently. Hence, for clarity, you should only be drawing using black and white pixels.

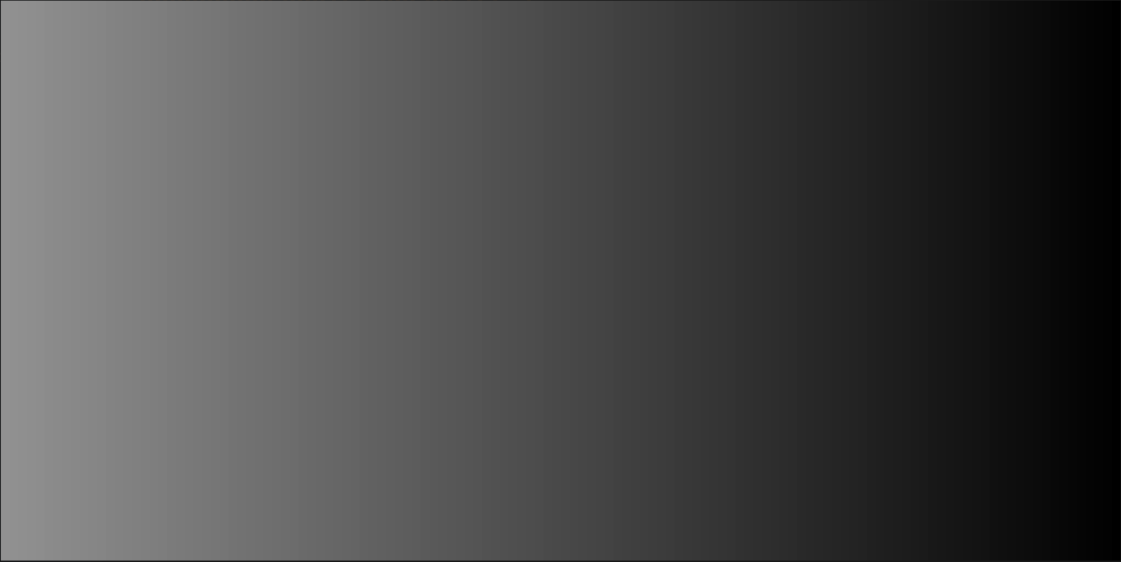

• Uncompiled gradient:

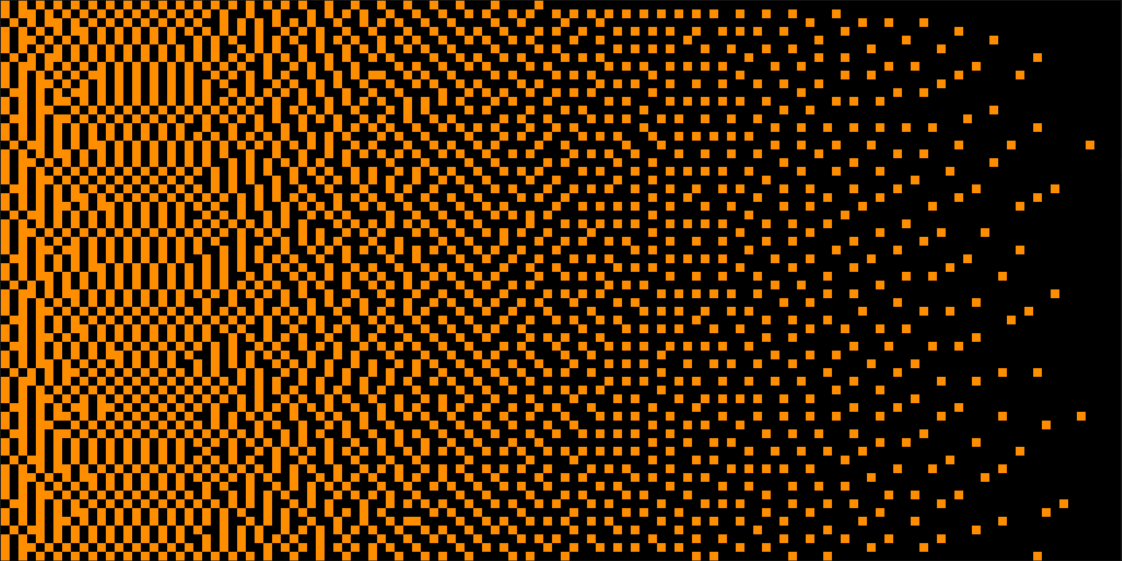

• Gradient compiled with asset_packer.py:

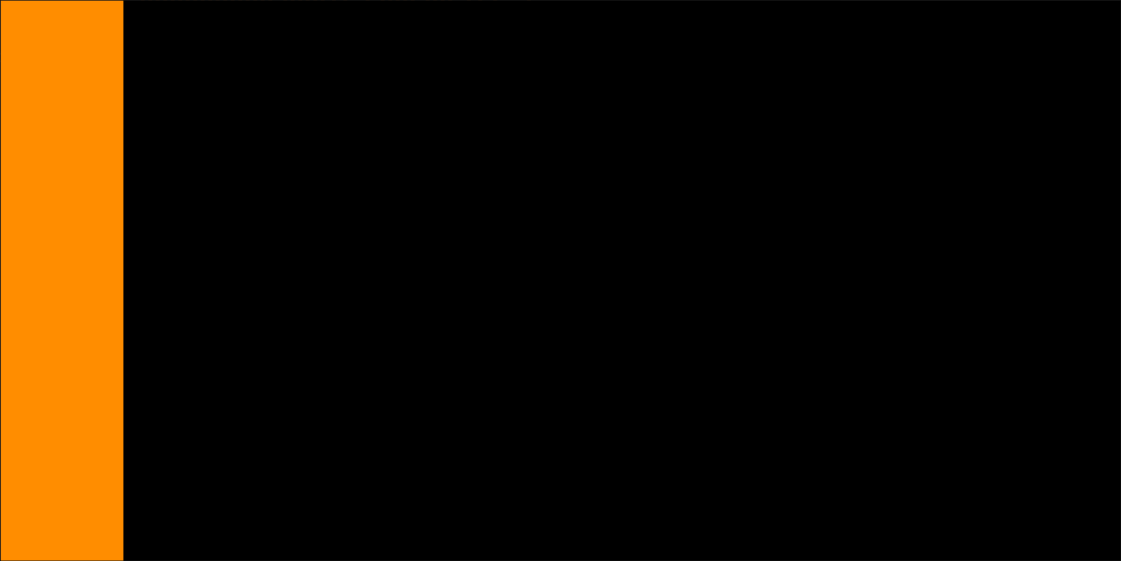

• Gradient compiled with FlipperAM:
